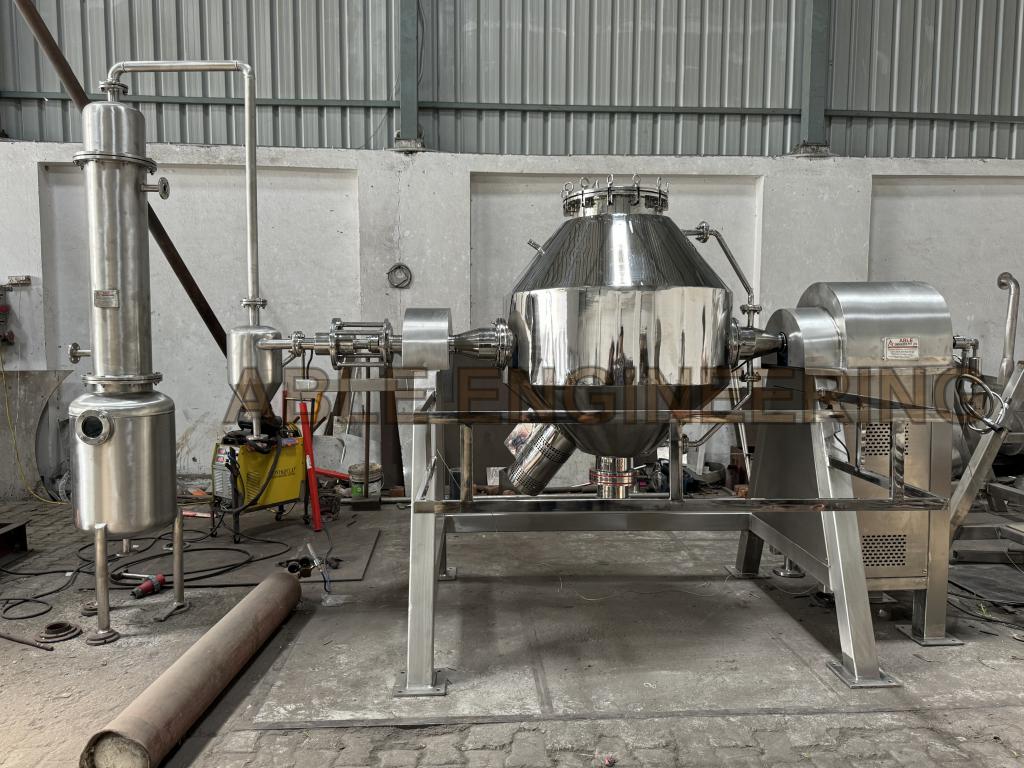

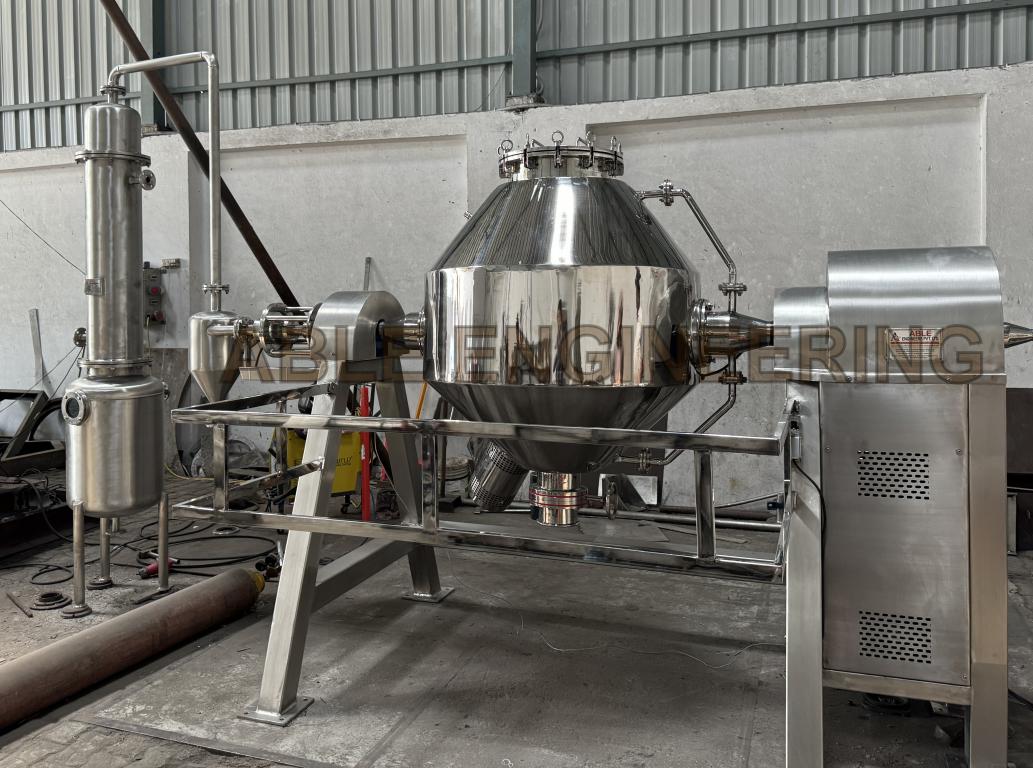

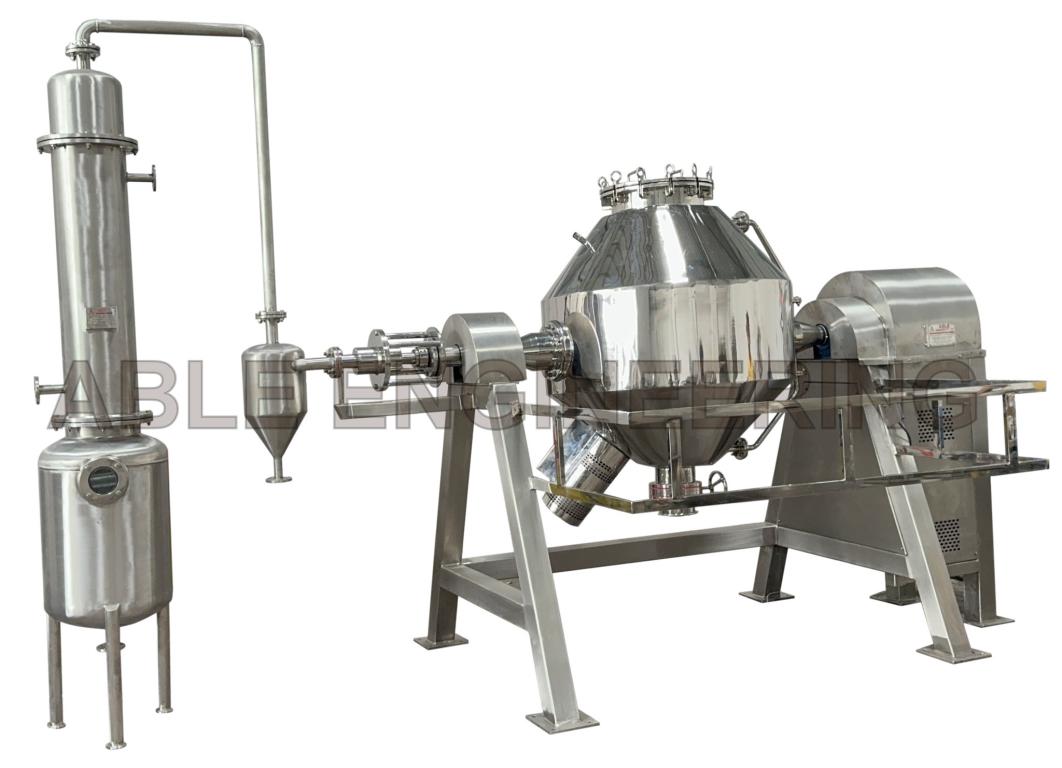

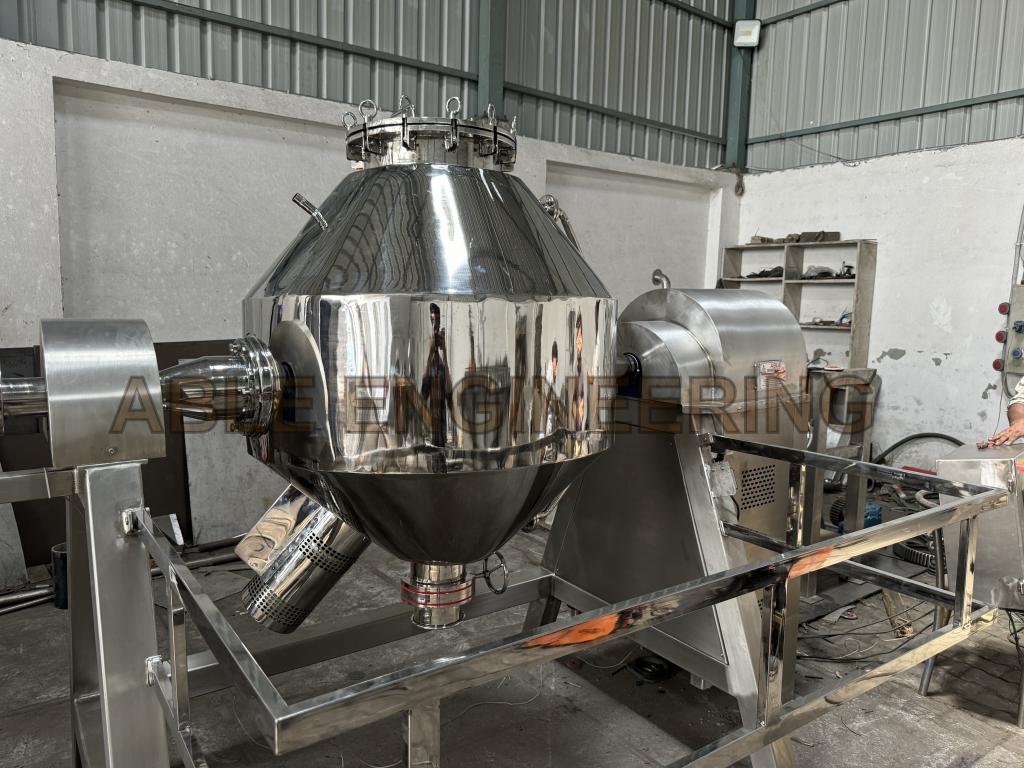

Rotocone Vacuum Dryer (RCVD)

Able Engineers Private Limited manufactures Roto-Cone Vacuum Dryers (RCVD), also known as Rotocone Vacuum Dryers or Rota Cone Vacuum Dryers, for efficient drying of materials under vacuum conditions. These dryers are particularly suitable for materials that cannot withstand high temperatures, are easily oxidised, contain volatile solvents, or require careful handling due to their sensitive nature.

The Roto-Cone Vacuum Dryer (RCVD) combines vacuum drying with gentle rotary movement to achieve efficient moisture removal at relatively low temperatures. During operation, the rotating cone continuously tumbles the material, allowing uniform exposure to the heated surfaces. Furthermore, the vacuum system reduces the boiling point of liquids, which helps evaporate moisture and solvents at lower temperatures.

Able Engineers' Roto-Cone Vacuum Dryer incorporates an improved design for efficient drying, low-temperature operation, and effective solvent recovery. The system also supports cGMP-based manufacturing practices by providing a closed drying arrangement that helps control dust and product exposure. Additionally, its design allows convenient material charging and discharging.

Depending on the application, the drying unit can also incorporate lump breakers to break large lumps during the drying process. These breakers help reduce agglomerates and produce a more uniform, lump-free material. Moreover, the rotary movement of the dryer, combined with the mechanical action of the lump breaker, helps reduce drying time and improve the final product consistency.

Working Principle of Roto-Cone Vacuum Dryer (RCVD)

The Roto-Cone Vacuum Dryer works on the combined principles of vacuum drying, heat transfer, and rotary mixing.

First, operators charge the wet material into the drying chamber. Next, the system creates a vacuum inside the chamber and starts the rotary movement. The heating arrangement transfers heat to the material while the vacuum reduces the boiling point of the moisture or solvent.

As the cone rotates, the material moves gently from one end to another and continuously changes its position. Consequently, the material receives uniform heat exposure and releases moisture more efficiently.

Furthermore, the vacuum system removes the generated vapours from the chamber. When required, the system can recover valuable solvents through a suitable condenser arrangement. This process helps achieve efficient drying while protecting temperature-sensitive materials.

Features of Roto-Cone Vacuum Dryer (RCVD)

• Vacuum Drying System: Supports moisture removal at relatively low temperatures.
• Low-Temperature Operation: Suitable for heat-sensitive materials that cannot withstand high drying temperatures.
• Uniform Drying: Rotary movement continuously tumbles the material for better heat exposure.
• Solvent Recovery: Supports recovery of volatile solvents through a suitable condenser system.
• Closed Drying Arrangement: Helps minimise dust generation and product exposure during processing.
• cGMP-Based Design: Supports hygienic manufacturing practices and controlled material handling.
• Lump Breaker Arrangement: Available with lump breakers to break large agglomerates during drying.
• Gentle Material Handling: Low-speed rotation helps handle delicate and friable materials.
• Convenient Charging and Discharging: Provides a practical arrangement for material handling.
• Efficient Drying: Combines vacuum conditions and rotary movement to improve drying performance.
• Customised Construction: Equipment configuration and material of construction can be selected according to process requirements.

Applications of Roto-Cone Vacuum Dryer (RCVD)

Roto-Cone Vacuum Dryers are widely used in industries where low-temperature drying, solvent recovery, and gentle material handling are important.

• Herbal Extraction Industry: Drying herbal extracts and other suitable materials obtained during extraction processes.
• Pharmaceutical Industry: Drying temperature-sensitive pharmaceutical ingredients and intermediate products.
• Nutraceutical Industry: Processing sensitive nutritional ingredients and plant-based extracts.
• Chemical Industry: Drying chemical compounds, crystals, and materials containing recoverable solvents.
• Fine Chemical Industry: Handling delicate and sensitive chemical products under vacuum conditions.
• Food Processing Industry: Drying suitable food ingredients that require controlled temperature conditions.

Technical Specifications of Roto-Cone Vacuum Dryer (RCVD)

Able Engineers Private Limited manufactures Roto-Cone Vacuum Dryers in different capacities and configurations according to specific process requirements.

Final specifications, working capacity, operating temperature, vacuum level, heating arrangement, and construction material can be customised according to the customer's product and process requirements.

Advantages of Rotocone Vacuum Dryer (RCVD)

1. Low-Temperature Drying for Heat-Sensitive Products

Under vacuum conditions, liquids evaporate at lower temperatures than they do at atmospheric pressure. Therefore, the Roto-Cone Vacuum Dryer is suitable for drying temperature-sensitive materials that may deteriorate under high-temperature conditions.

2. Efficient Heat Utilisation

Vacuum operation allows moisture and solvents to evaporate at reduced temperatures. As a result, the temperature difference between the heating surface and the material can be utilised effectively without requiring excessively high product temperatures.

3. Gentle Handling of Friable Materials

The dryer operates at a relatively low rotational speed, generally a few revolutions per minute, depending on the design. Consequently, it is suitable for handling friable solids, crystals, agglomerates, and delicate materials that require gentle movement during drying.

4. Effective Solvent Recovery

The closed vacuum drying arrangement allows the system to handle volatile solvents. Moreover, a suitable condenser arrangement can collect and recover solvent vapours, helping reduce solvent losses during processing.

5. Lump-Free Product

When equipped with lump breakers, the dryer breaks large agglomerates during operation. This mechanical action, combined with rotary movement, helps produce a more uniform and lump-free final product.

6. Complete and Convenient Discharge

Unlike many agitated drying systems, the Roto-Cone Vacuum Dryer has a relatively simple internal arrangement without conventional agitator blades. Its smooth conical surfaces and suitable discharge design help minimise product retention and support easy material discharge.

7. Improved Dust Control

The closed-system design helps minimise dust exposure during drying. Additionally, it supports controlled material handling during charging, processing, and discharging.

Able Engineers Private Limited manufactures Roto-Cone Vacuum Dryers (RCVD) for industrial drying applications requiring low-temperature operation, efficient solvent recovery, and gentle material handling. Our equipment serves the Herbal Extraction, Pharmaceutical, Nutraceutical, Chemical, Fine Chemical, and Food Processing industries. We also provide application-based equipment configurations to meet specific product characteristics, processing capacities, and manufacturing requirements.
