Rotary Extractor

Rotary Extractor used in Herbal and Phytochemical Industry for recovery of solvent by indirect steam heating.

Rotary Extractor
Contact partsSS 304 / SS 316 / SS 316L
DesigncGMP compliant
BuildTo client specification
Overview

Built around your process.

A Rotary Extractor is an Industrial Extraction Vessel used in the Herbal and Phytochemical Industries for extracting active ingredients from dried herbs, seed powder, roots, and leaves using a suitable solvent. It also supports solvent recovery through indirect steam heating.

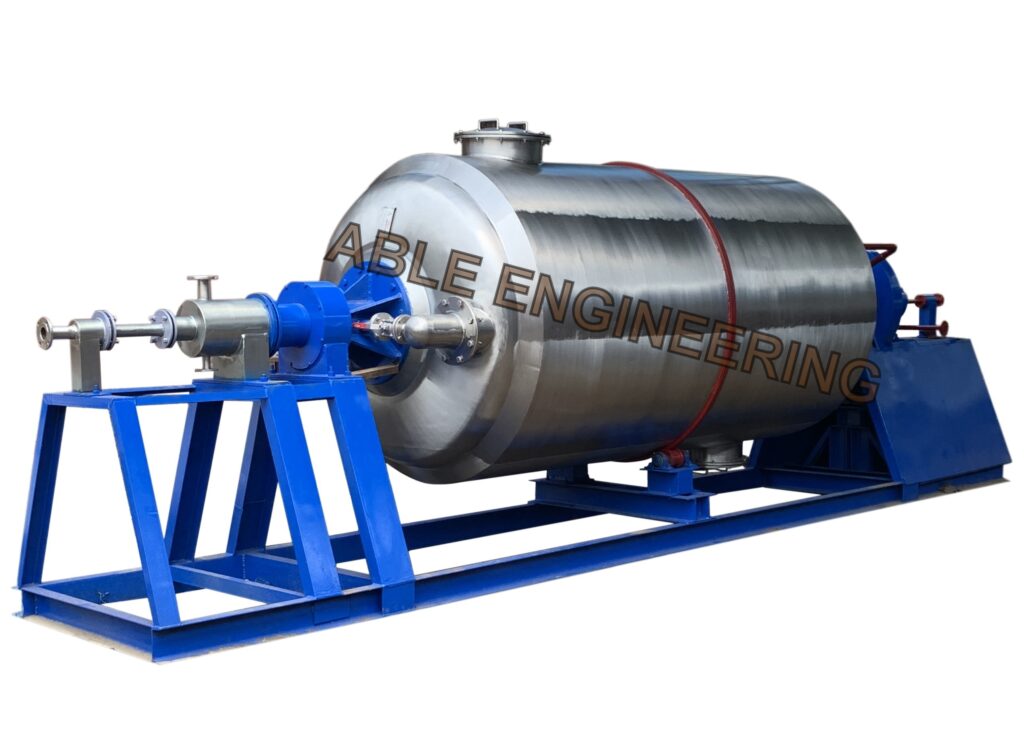

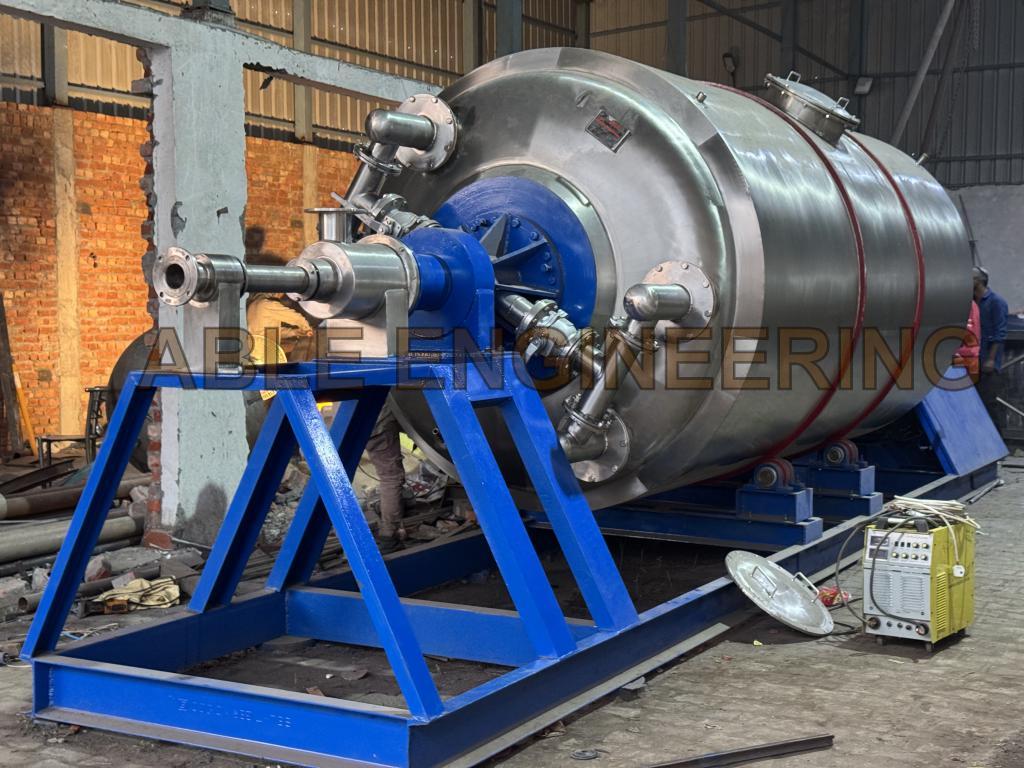

The Rotary Extractor features a stainless steel cylindrical vessel with a steam jacket on its outer surface. During operation, the vessel rotates along its horizontal axis and receives support through shafts on both sides. This rotation facilitates effective contact between the herbal material and solvent, making the equipment suitable for large-capacity extraction processes.



Able Engineers Private Limited, also known as Able Engineering, manufactures Rotary Extractors in capacities ranging from 3 KL, 6 KL, 8 KL, 10 KL, 12 KL, and 15 KL. We offer four jacket configurations: Spiral Jacket, Limpet Jacket, Dimple Jacket, Mild Steel Plugged Jacket, and Stainless Steel Jacket.

Additionally, we offer a Special Dimple Jacketed Rotary Extractor with Inbuilt Insulation, a distinctive design featuring a dimple jacket with integrated insulation for improved thermal efficiency.



Features of Rotary Extractor

  • Stainless steel cylindrical vessel for industrial extraction
  • Horizontal rotation for effective material and solvent contact
  • Steam jacket for indirect heating and solvent recovery
  • Suitable for large-capacity herbal extraction processes
  • Available in capacities of 3 KL, 6 KL, 8 KL, 10 KL, 12 KL, and 15 KL
  • Four jacket options: Spiral, Plugged, Limpet, and Dimple (MS/SS)
  • Special dimple jacket with built-in insulation
  • Durable construction with proper alignment and balancing
  • Designed using quality raw materials and modern manufacturing techniques

Applications of Rotary Extractor



Rotary Extractors are widely used in industries that require extraction of active ingredients from botanical raw materials.

  • Herbal Extraction Industry: Extraction of active ingredients from dried herbs and plant materials
  • Phytochemical Industry: Processing botanical materials to obtain phytochemicals
  • Ayurvedic Industry: Extraction from roots, leaves, seeds, and herbal powders
  • Pharmaceutical Industry: Processing plant-based materials for further extraction and formulation
  • Nutraceutical Industry: Extraction of botanical ingredients for nutritional products

Technical Specifications



Parameter Specification
Equipment Name Rotary Extractor
Vessel Type Cylindrical
Orientation Horizontal
Operation Rotary
Heating Medium Steam
Extraction Medium Suitable Solvent
Capacity 3 KL, 6 KL, 8 KL, 10 KL, 12 KL, 15 KL
Material of Construction Stainless Steel / As per requirement
Jacket Options Limpet, Dimple, Mild Steel, Stainless Steel
Special Design Dimple Jacket with Inbuilt Insulation
Application Herbal and Phytochemical Extraction

We can customize the capacity, jacket configuration, and other specifications according to process requirements.



Advantages of Rotary Extractor

  • Large-Capacity Processing: Handles large batches of herbal raw materials for industrial extraction.
  • Effective Extraction: Horizontal rotation improves contact between the solvent and herbal material.
  • Indirect Steam Heating: The steam jacket provides controlled heating during extraction.
  • Solvent Recovery: Supports solvent recovery through indirect steam heating.
  • Multiple Jacket Options: Offers flexibility in jacket selection according to process requirements.
  • Improved Thermal Efficiency: The special dimple jacket with inbuilt insulation helps minimize heat loss.
  • Reliable Performance: Proper alignment and balancing support smooth rotary operation.
  • Durable Construction: Quality stainless steel and raw materials ensure dependable industrial performance.

Rotary Extractor Manufacturer in India

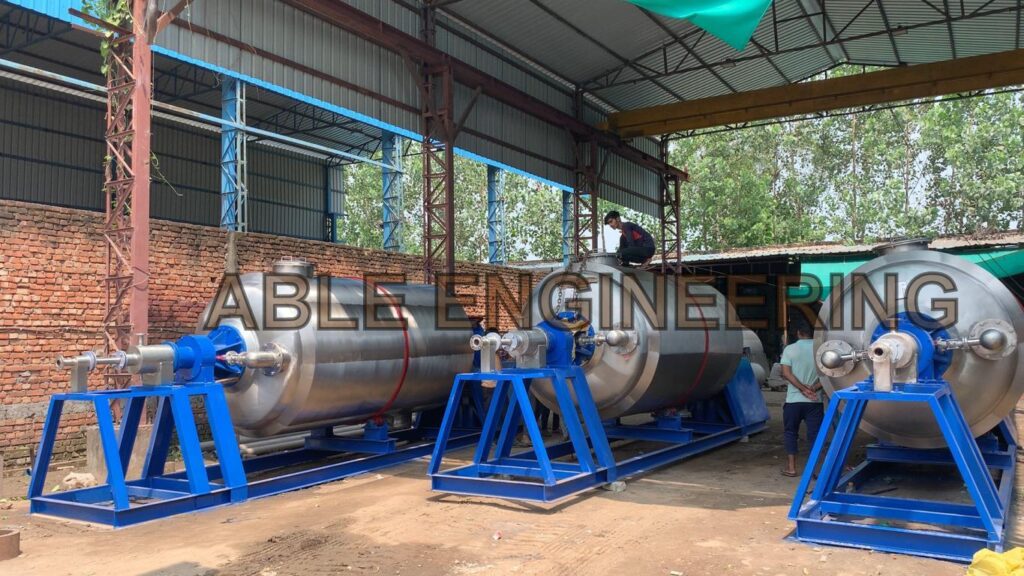

Able Engineers Private Limited, also known as Able Engineering, is a manufacturer and supplier of Rotary Extractors in India for Herbal and Phytochemical Processing Industries. Our equipment has been successfully installed in various industrial plants and offers reliable performance for large-capacity extraction requirements.

We manufacture rotary extractors in multiple capacities and jacket configurations, including our special Dimple Jacketed Rotary Extractor with Inbuilt Insulation. Furthermore, our team designs customized equipment according to plant layout, production capacity, and specific process requirements.



Contact Able Engineers Private Limited for customized Rotary Extractor solutions for your Herbal Extraction and Phytochemical Plant.

Key features
  • Jacketed vessel for steam or thermic-fluid heating
  • Suitable for water, hydro-alcoholic and solvent extraction
  • Charging manhole and quick discharge of spent herb
  • Contact parts in SS 304 / SS 316 / SS 316L
  • Built to cGMP with mirror or matt finish
Applications
Ayurvedic extractsNutraceutical extractsPharmaceutical activesEssential oils
