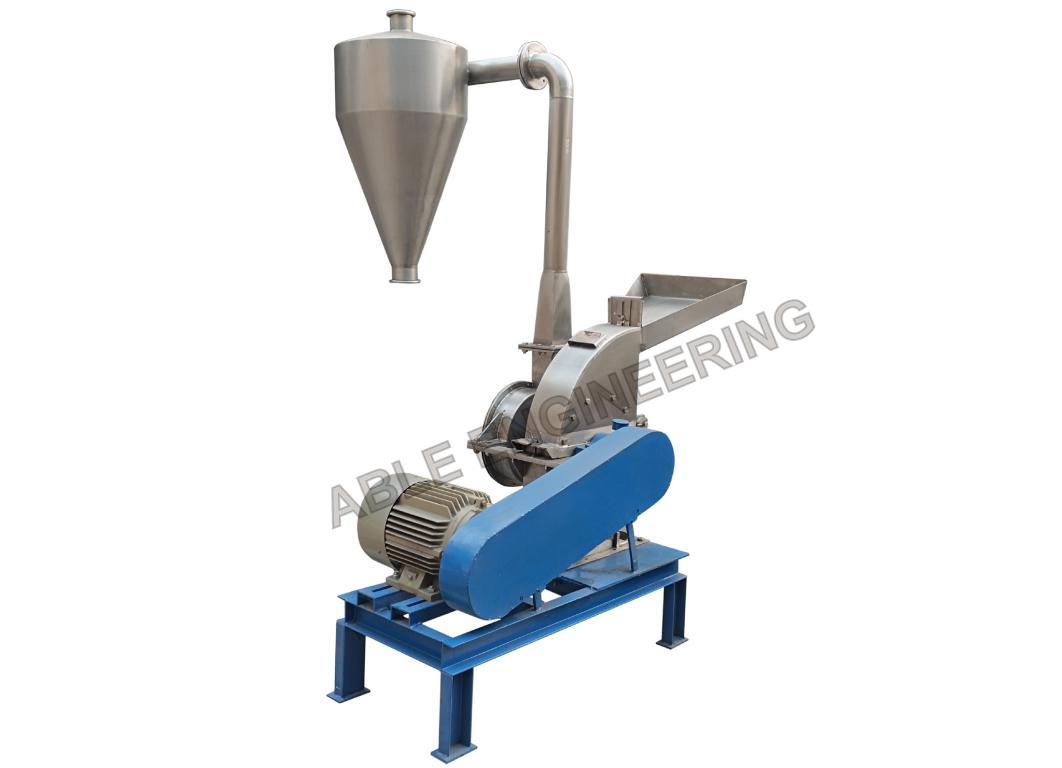

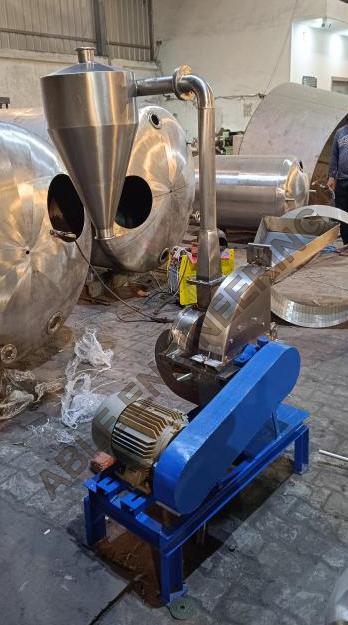

Micro Pulverizer (Micronizer)

A Micro Pulverizer (Micronizer) is industrial grinding equipment used in Herbal Extraction Plants, Phyto Extraction Plants, and Pharmaceutical Plants to convert various raw materials into fine powder. It helps achieve efficient grinding and particle size reduction for different industrial processing requirements.



A Pulverizer or Grinder is a mechanical device that reduces materials into smaller particles through grinding. In a Micro Pulverizer, the raw material enters the machine through an inlet hopper and rotary feeder. It then moves into the grinding chamber, where rotating hammers break down the material into smaller particles through impact.

Meanwhile, an air stream carries the ground material towards the outlet. The Whizzer Classifier separates fine particles from oversized particles. It prevents oversized particles from passing through and returns them to the grinding chamber for further grinding. Consequently, the system achieves the desired particle size through continuous classification and size reduction.



Furthermore, a fan transports the processed particles from the Whizzer Classifier to the Cyclone Collector. The cyclone and fabric-type Dust Collector separate the powder from the air. As a result, the system maintains cleaner air, reduces dust emissions, and supports dust-controlled operation.



Able Engineers Private Limited manufactures and supplies high-quality Micro Pulverizers (Micronizers) for industrial grinding applications. We offer customized machinery for Herbal Extraction Plants, Phyto Extraction Plants, Pharmaceutical Plants, and other industries at competitive prices.

Features of Micro Pulverizer (Micronizer)

• Designed for efficient grinding and fine powder production
• Suitable for Herbal Extraction, Phyto Extraction, and Pharmaceutical Industries
• Equipped with an inlet hopper and rotary feeder for controlled material feeding
• Uses rotating hammers for effective grinding and particle size reduction
• Incorporates a Whizzer Classifier for particle size separation
• Returns oversized particles to the grinding chamber for further grinding
• Includes a fan for pneumatic transportation of ground material
• Equipped with a Cyclone Collector for powder collection
• Includes a fabric-type Dust Collector for dust control
• Supports continuous grinding and classification operations

Applications of Micro Pulverizer (Micronizer)

Micro Pulverizers serve various industries that require grinding, pulverizing, and fine powder production.

• Herbal Extraction Industry: Grinds herbs and botanical raw materials into fine powder before processing.
• Phyto Extraction Industry: Reduces plant-based materials into smaller particles for extraction.
• Pharmaceutical Industry: Supports the grinding and size reduction of different raw materials.
• Nutraceutical Industry: Processes suitable ingredients into powder form.
• Chemical Industry: Grinds various chemical materials according to process requirements.
• Food Processing Industry: Supports grinding applications involving suitable food-grade materials.

Technical Specifications

Parameter	Specification
Equipment	Micro Pulverizer (Micronizer)
Application	Grinding and Fine Powder Production
Feeding System	Inlet Hopper with Rotary Feeder
Grinding Mechanism	Hammer-Type Grinding
Classification System	Whizzer Classifier
Material Transportation	Air Stream with Fan
Powder Collection	Cyclone Collector
Dust Control	Fabric-Type Dust Collector
Capacity	Customized as per requirements
Design	Based on material and process requirements

Note: Capacity, grinding configuration, and other technical specifications can be customized according to material characteristics and client requirements.

Advantages of Micro Pulverizer (Micronizer)

• Fine Grinding: Reduces raw materials into fine powder through effective grinding.
• Particle Size Control: The Whizzer Classifier separates oversized particles and returns them for further grinding.
• Continuous Operation: Supports continuous feeding, grinding, classification, and powder collection.
• Efficient Material Handling: The air stream and fan transport ground particles through the system.
• Dust Control: The cyclone and fabric-type dust collector help maintain a cleaner working environment.
• Versatile Applications: Processes various materials across multiple industrial sectors.
• Customized Solutions: Allows equipment configuration according to specific grinding requirements.

Micro Pulverizer Manufacturer in India

Able Engineers Private Limited is a manufacturer and supplier of Micro Pulverizers (Micronizers) in India. We also manufacture Herbal Extraction Plants and Herbal Extraction Plant Machinery for industrial applications.

Our Micro Pulverizers support grinding and fine powder production for Herbal Extraction Plants, Phyto Extraction Plants, Pharmaceutical Industries, Nutraceutical Industries, Chemical Industries, and other sectors.



Contact us to discuss your material processing requirements and find a suitable Micro Pulverizer (Micronizer) for your application.
