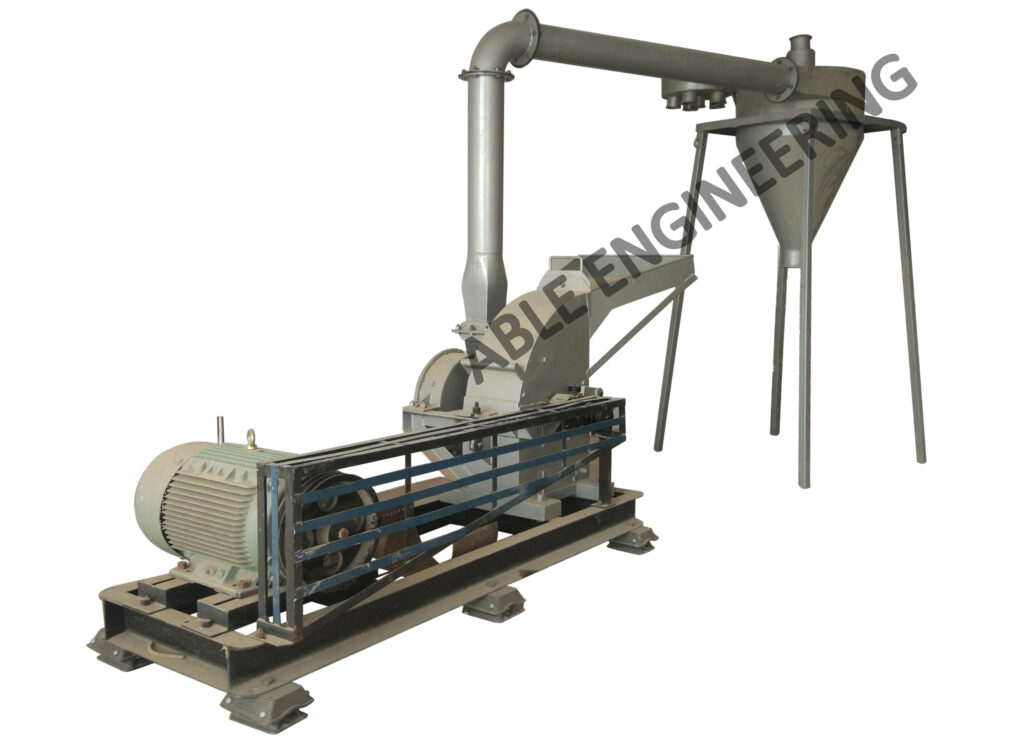

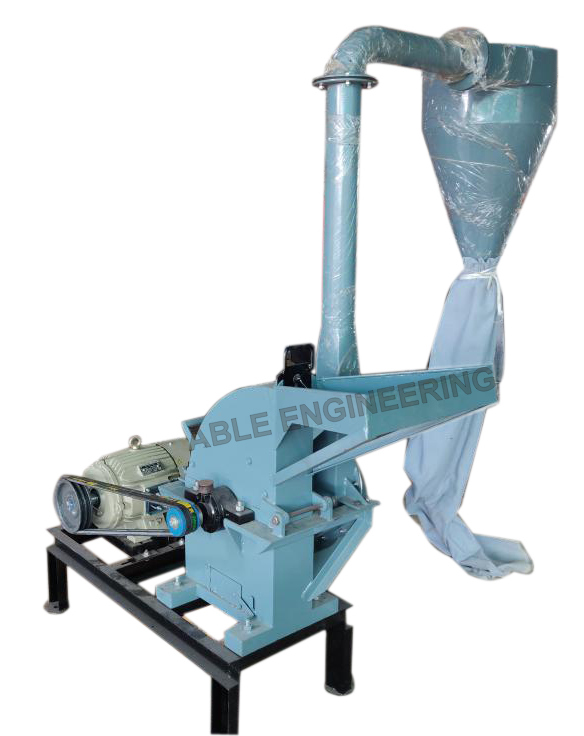

Raw Herbs Grinder

Raw Herbs Grinder (Herb Pulverizer) is widely used in Herbal Extraction Plants, Phyto Extraction Plants, and Pharmaceutical Plants to grind raw herbs and other materials into fine powder. Also known as an Industrial Pulverizer or Herb Grinder, this machine efficiently reduces the size of different raw materials for further processing.

Working Principle of Raw Herbs Grinder

The Raw Herbs Grinder uses a rotary feeder to transfer raw materials from the inlet hopper into the grinding chamber. Inside the chamber, high-speed rotating hammers strike the material and break larger lumps into smaller particles.



Meanwhile, an air stream carries the ground material towards the outlet. The integrated Whizzer Classifier separates oversized particles and sends them back to the grinding chamber. As a result, the machine continues grinding until the material reaches the required particle size.



The fan then conveys the classified particles to the cyclone collector. Additionally, a three-way connection between the cyclone and fabric-type dust collector separates powder from the air and returns cleaner air to the mill. This arrangement also helps control dust and keeps the grinding operation clean.

Features of Raw Herbs Grinder

• High-Speed Hammer Grinding: Strong rotating hammers efficiently break down raw herbs and other materials into smaller particles.
• Rotary Feeding System: Controls the flow of raw materials from the inlet hopper into the grinding chamber.
• Whizzer Classifier: Separates oversized particles and returns them to the grinding chamber for further processing.
• Air-Assisted Conveying: An integrated fan transports ground material through the system.
• Cyclone Collection System: Collects processed powder by separating it from the conveying air.
• Fabric-Type Dust Collector: Captures airborne dust and helps maintain a cleaner working environment.
• Efficient Particle Size Reduction: Continuous classification and re-grinding help achieve the required particle size.
• Industrial Design: Supports reliable operation in various industrial material-processing applications.

Applications of Raw Herbs Grinder

The Raw Herbs Grinder Machine serves a wide range of industrial applications, including:

• Herbal Extraction Industry: Grinding roots, leaves, seeds, stems, and other raw botanical materials.
• Phyto Extraction Industry: Pulverizing plant-based raw materials before extraction.
• Pharmaceutical Industry: Grinding herbs and other materials for pharmaceutical processing.
• Ayurvedic Industry: Processing medicinal herbs and botanical ingredients into powder.
• Nutraceutical Industry: Grinding plant-based and nutritional raw materials.
• Food Processing Industry: Pulverizing suitable food ingredients and raw materials.

Technical Specifications of Raw Herbs Grinder

Parameter	Description
Machine Type	Raw Herbs Grinder / Herb Pulverizer
Grinding Mechanism	High-speed hammer system
Feeding Arrangement	Inlet hopper with rotary feeder
Classification System	Whizzer Classifier
Material Conveying	Air-assisted conveying with fan
Collection System	Cyclone Collector
Dust Control	Fabric-type dust collector
Particle Size	As per material and process requirements
Construction Material	Customized as per application
Capacity	As per production requirements

Advantages

• Efficient Grinding: Processes raw herbs and botanical materials into fine powder.
• Controlled Particle Size: The integrated classifier helps achieve the required fineness.
• Reduced Material Wastage: Returns oversized particles for further grinding instead of discharging them prematurely.
• Effective Material Conveying: Uses an air-assisted system to transport ground powder.
• Improved Dust Control: The cyclone and fabric-type dust collector help maintain a cleaner working environment.
• Versatile Applications: Handles a wide range of herbal, botanical, and industrial materials.
• Better Process Efficiency: Prepares raw materials effectively for subsequent extraction and manufacturing operations.

Raw Herbs Grinder Manufacturer in India

Able Engineers Private Limited is a leading Raw Herbs Grinder Manufacturer in India, specializing in Herbal Extraction Plants and Herbal Extraction Plant Machinery.



We manufacture high-quality Raw Herbs Grinders, Herb Pulverizers, and Industrial Grinding Equipment for efficient size reduction of various botanical and industrial materials. Moreover, our machinery serves Herbal Extraction, Phyto Extraction, Ayurvedic, Pharmaceutical, Nutraceutical, and Food Processing Industries.

With our manufacturing expertise, we provide customized industrial machinery and turnkey plant solutions to meet specific production and processing requirements. Our focus remains on reliable equipment, efficient operation, and practical solutions for industrial applications.
