Dryers

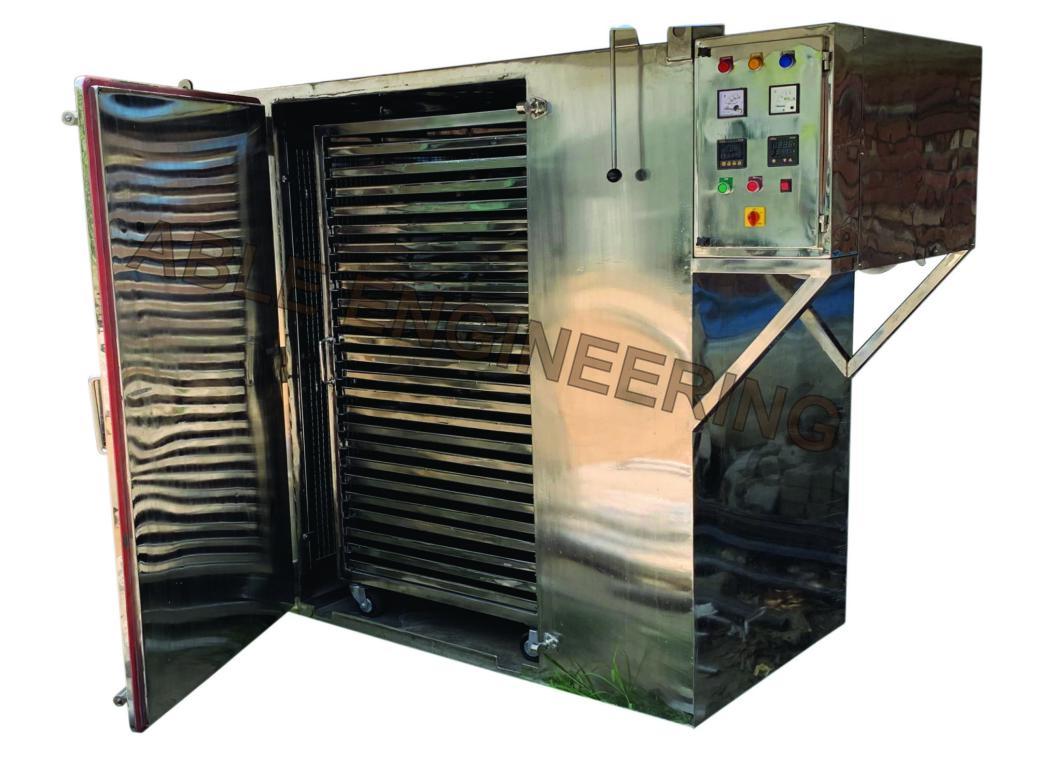

Steam Tray Dryer

Able Engineering offers Steam Tray Dryer with various types of heating systems such as Steam, Electrical & Thermic Fluid.

Steam Tray Dryer
CapacityAs per requirement
Contact partsSS 304 / SS 316 / SS 316L
DesigncGMP compliant
BuildTo client specification
Overview

Built around your process.

Able Engineers Private Limited manufactures Steam Tray Dryers with different heating arrangements, including Steam Heating, Electrical Heating, and Thermic Fluid Heating. These dryers are designed to remove moisture from various materials under controlled temperature conditions. They are widely used in the Herbal Extraction, Food Processing, Pharmaceutical, Chemical, and Laboratory industries.

A Steam Tray Dryer uses steam as a heating medium to transfer heat indirectly to the material through heated shelves or heating surfaces. This arrangement prevents direct contact between the heating medium and the product. As a result, it helps maintain controlled drying conditions and protects materials from direct exposure to the heating medium.

The trays are an important part of this equipment. Operators place the materials or samples on trays and load them onto the shelves inside the drying chamber. The heating system then supplies heat to the chamber through the selected heating arrangement. Depending on the material and process requirements, operators can select suitable drying temperatures, such as 100°C, 160°C, 250°C, or other temperatures according to the equipment design.

Able Engineers Private Limited manufactures Steam Tray Dryers for production-scale applications, particularly for the Herbal and Food Processing industries. These dryers are also suitable for applications such as drying tea leaves, herbal materials, and other process products.

Working Principle of Steam Tray Dryer

The Steam Tray Dryer works on the principle of convection drying. This process uses heated air inside the chamber to remove moisture from materials placed on trays.

First, the heating system heats the shelves or heating surfaces using steam, electricity, or thermic fluid. Next, heat transfers to the air inside the drying chamber. A suitable air circulation arrangement distributes the heated air around the trays.

As the hot air passes over the materials, it absorbs moisture and carries it away from the product. Consequently, the moisture content gradually decreases until the material reaches the required dryness.

Furthermore, operators can adjust the drying temperature according to the material characteristics and moisture removal requirements. This helps achieve suitable drying conditions for different products.

Features of Steam Tray Dryer

  • Multiple Heating Options: Available with steam, electrical, and thermic fluid heating arrangements.
  • Indirect Heating System: Transfers heat through shelves or heating surfaces without direct contact between the heating medium and the product.
  • Uniform Heat Distribution: Supports consistent heat transfer across the drying chamber.
  • Tray Loading Arrangement: Uses multiple trays for convenient material loading and unloading.
  • Controlled Temperature: Allows operators to select suitable drying temperatures according to product requirements.
  • Hot Air Circulation: Distributes heated air throughout the chamber for effective moisture removal.
  • Production-Scale Design: Suitable for industrial batch drying applications.
  • Versatile Applications: Handles different materials used in herbal, food, pharmaceutical, and chemical processing.
  • Customised Configuration: Tray quantity, chamber capacity, heating system, and construction material can be selected according to process requirements.
  • Easy Operation and Maintenance: Designed to support routine industrial operation and cleaning.

Applications of Steam Tray Dryer

Steam Tray Dryers are used in different industries to reduce moisture content in raw materials, intermediate products, and finished goods.

  • Herbal Extraction Industry: Drying herbal extracts, medicinal plants, and other suitable herbal materials.
  • Food Processing Industry: Drying tea leaves, food ingredients, and other food-processing materials.
  • Pharmaceutical Industry: Drying suitable pharmaceutical raw materials and intermediate products.
  • Chemical Industry: Removing moisture from compatible chemical materials and products.
  • Laboratory Applications: Drying samples and materials under controlled temperature conditions.
  • Nutraceutical Industry: Drying suitable nutritional ingredients and plant-based materials.

Technical Specifications

Able Engineers Private Limited manufactures Steam Tray Dryers in different configurations according to production capacity and process requirements.

Parameter Details
Equipment Name Steam Tray Dryer
Drying Principle Convection Drying
Heating Options Steam / Electrical / Thermic Fluid
Heating Arrangement Indirect Heating
Air Circulation Hot Air Circulation
Loading Arrangement Tray and Shelf System
Temperature Range As per equipment design and application
Operation Batch-Type Drying
Application Scale Production Scale
Material Type Herbal, Food, Pharmaceutical, and Chemical Materials
Construction Material As per customer requirements

The number of trays, chamber capacity, operating temperature, heating arrangement, and construction material can be customised according to the customer's specific requirements.

Advantages of Steam Tray Dryer

  • Uniform Drying: Heated air circulation helps distribute heat throughout the chamber and supports consistent moisture removal.
  • Multiple Heating Options: Customers can select steam, electrical, or thermic fluid heating according to their available utilities.
  • Indirect Heat Transfer: Keeps the heating medium separate from the product during normal operation.
  • Controlled Drying Temperature: Allows suitable temperature selection for different materials.
  • Batch Processing: Supports controlled drying of different products in separate batches.
  • Convenient Material Handling: The tray and shelf arrangement makes loading and unloading easier.
  • Versatile Industrial Applications: Suitable for various materials used in the herbal, food, pharmaceutical, and chemical industries.
  • Customised Design: Allows equipment configuration according to production capacity and material characteristics.
  • Easy Maintenance: Supports routine inspection, cleaning, and maintenance.

Able Engineers Private Limited is a manufacturer of Steam Tray Dryers and industrial machinery for the Herbal Extraction, Pharmaceutical, and Chemical industries in India. We also manufacture equipment for Food Processing and Nutraceutical applications. Our drying solutions include different heating arrangements and customised configurations to meet specific industrial drying and moisture removal requirements.

Key features
  • Low-temperature drying under vacuum
  • Uniform heating for consistent moisture content
  • Solvent recovery through condenser and receiver
  • Contact parts in SS 304 / SS 316
  • cGMP construction, easy to clean
Applications
Ayurvedic extractsNutraceutical extractsPharmaceutical activesEssential oils
